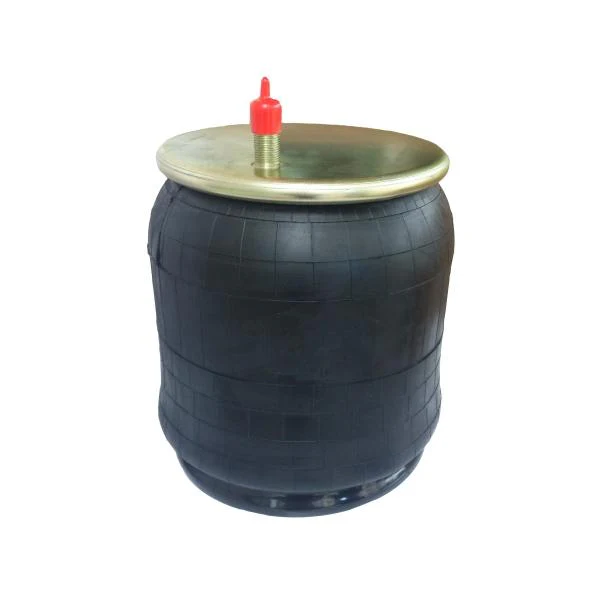

Fortpro Air Spring Replaces 9270, 1R13-119 | F245586

Fortpro air springs F245586 are an innovative form of suspension for heavy vehicles. They offer a smoother and more comfortable ride, greater stability and control on uneven terrain, greater load capacity, greater durability and adaptability. Air springs are an excellent option to improve the safety and performance of commercial and cargo transportation vehicles.

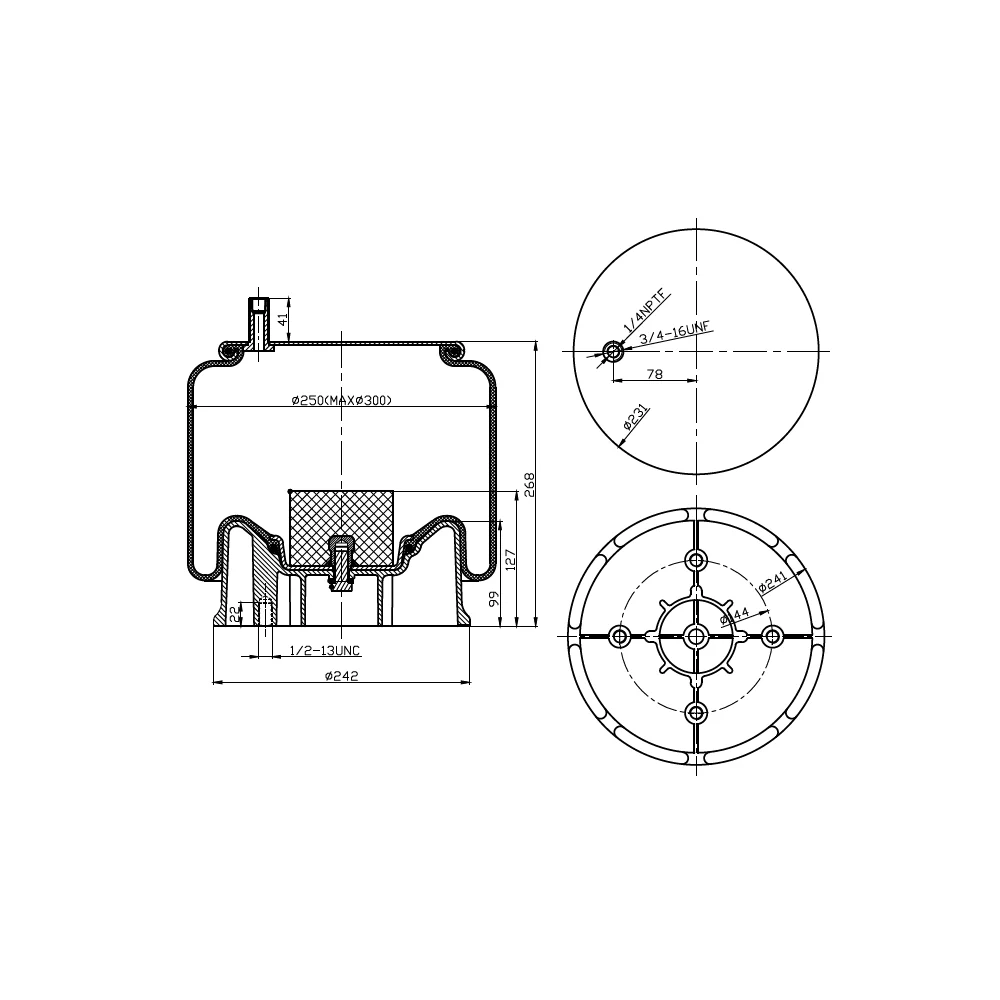

Specifications:

• Brand: Fortpro
• Part Type: Air Spring / Air Spring Bag / Suspension Air Spring / Cab Air Bag
• Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
• Part OEM: 9270, W013589270, W01-358-9270
• Position: Primary Truck & Trailer Axle
• Air Spring Style: 1T Reversible Sleeve
• Piston Type: Aluminum
• Bead Plate Diameter Bottom: 9.50"
• Bead Plate Diameter Top: 9.00"
• Collapsed Height: 5.60"
• Max. Height: 16.90"
• Part Diameter: 10.12"
• Piston Height: 3.90"
• Stud Configuration - Bottom: 4
• Stud Configuration - Top: 1
• VMRS: 016-008-000

CrossReference:

• Automann: 566CT64287, AB1DK23I9270, AB1DK25BS1015
• Contitech: 910135S433, 910135S433
• Dayton Parts Batco: 1R13119, 3529270, S20010
• Firestone: 9270, W01-358-9270, W013589270
• Goodyear: 1R12225, 1R12225, 1R13077, 1R13077, 1R13102, 1R13119, 1R13119
• Hendrickson: S25559
• Meritor: FS9270, MAF9270
