Fortpro Air Spring Replaces 9781, 1R12-603 for Freightliner Trucks | F245585
Fortpro Air Springs F245585 is a high-quality air suspension solution for Freightliner trucks and other commercial vehicles. They offer excellent driving stability and shock absorption, improving driver comfort and vehicle life.
Specifications:
- Brand: Fortpro
- Part Type: Air Spring / Air Spring Bag / Suspension Air Spring
- Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
- Part OEM: 9781, W01-358-9781, W013589781
- Position: Primary Truck & Trailer Axle
- Air Spring Style: 1T Reversible Sleeve

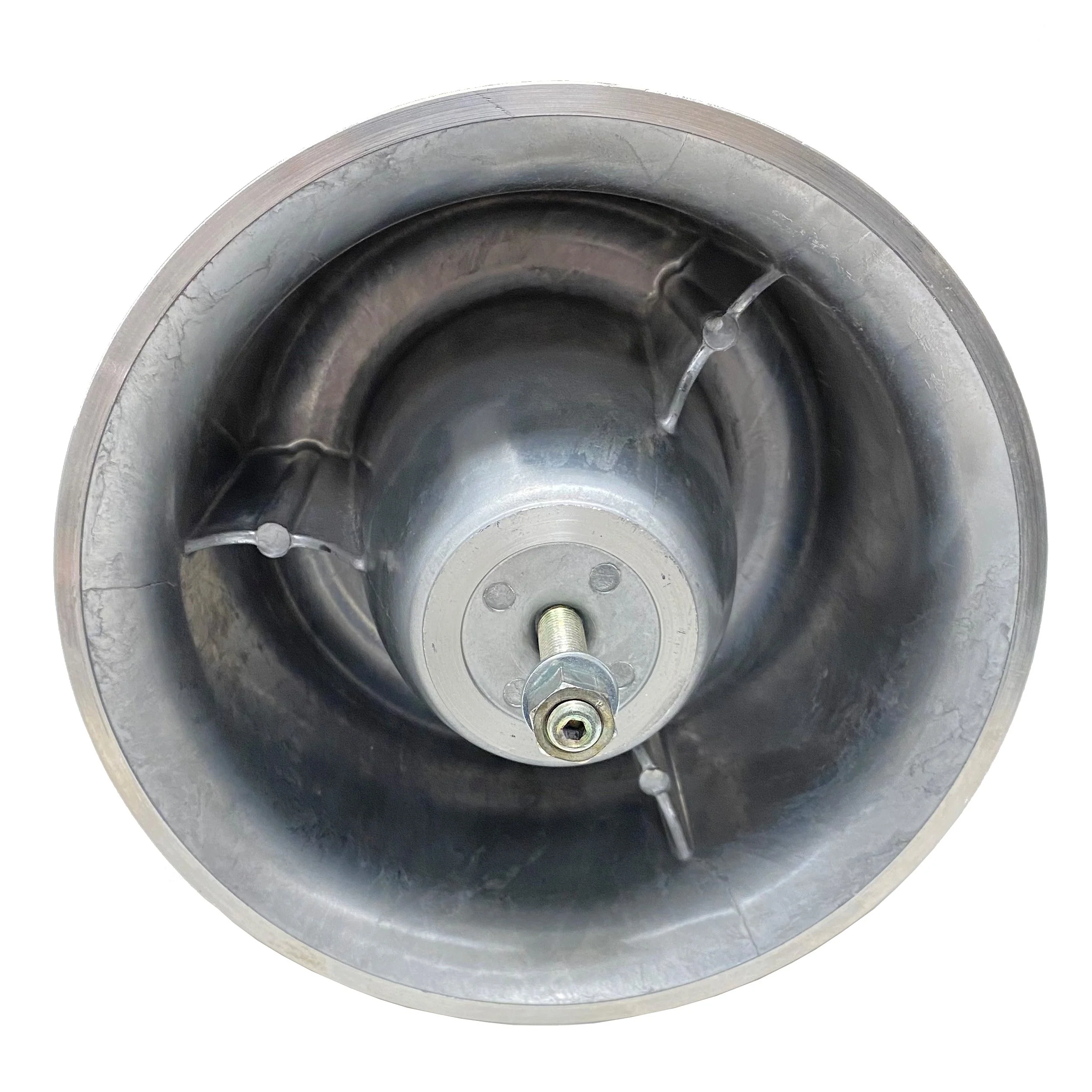

- Piston Type: Aluminum

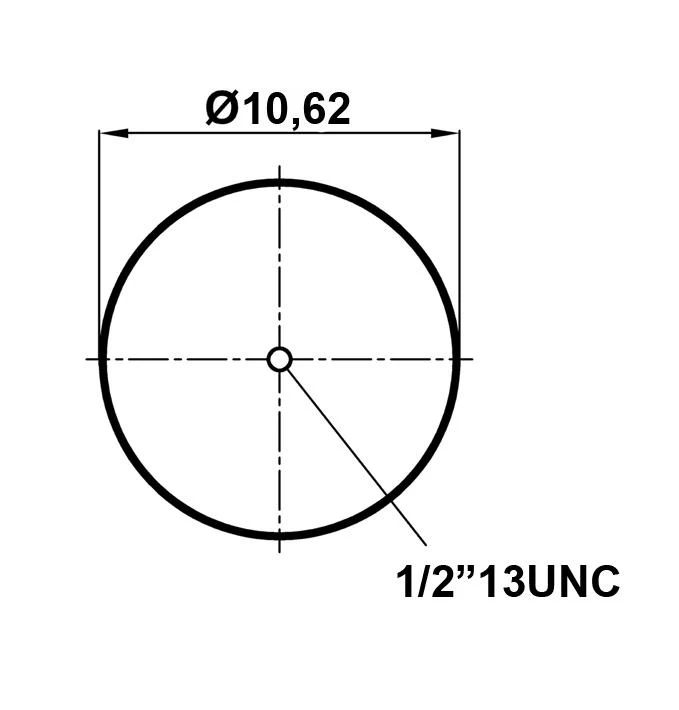

- Bead Plate Diameter Bottom: 10.62"

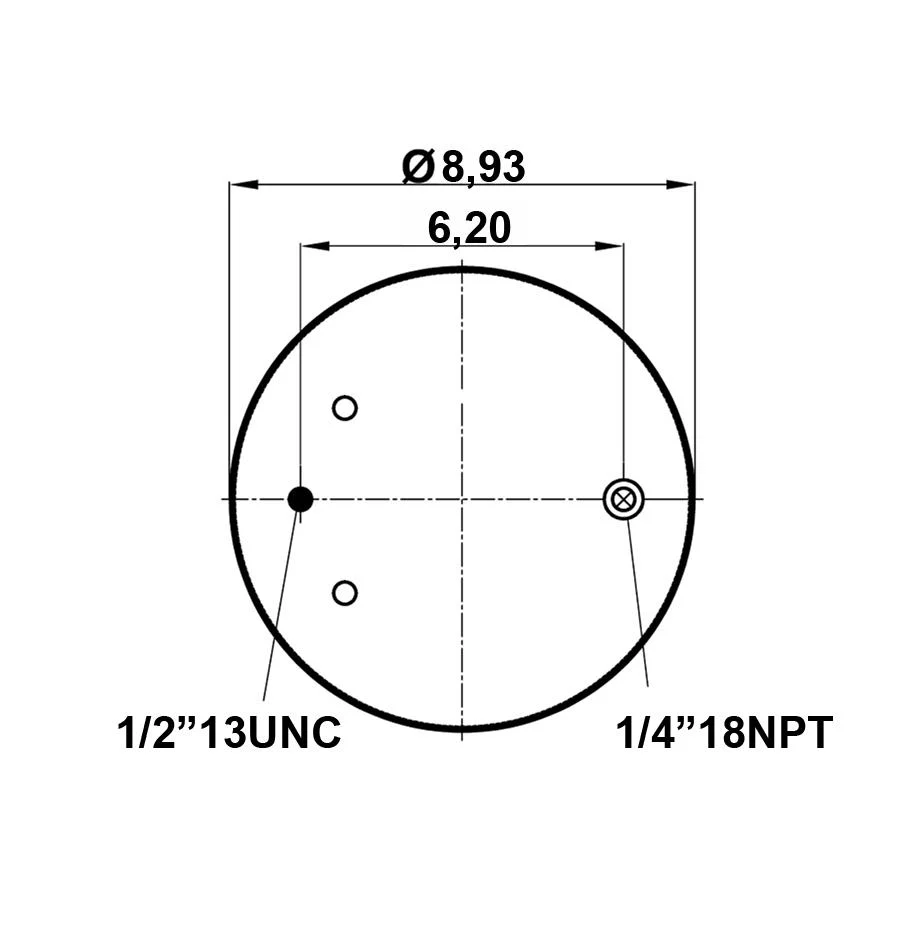

- Bead Plate Diameter Top: 9.00"
- Collapsed Height: 8.75"
- Max. Height: 23.00"
- Part Diameter: 10.62"

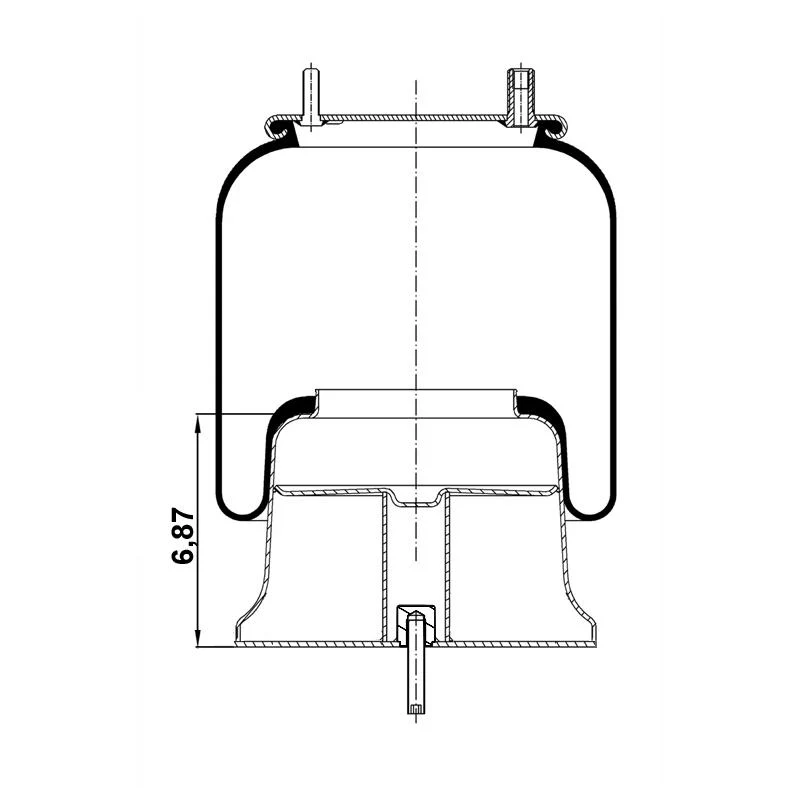

- Piston Height: 6.91"
- Stud Configuration - Bottom: 1
- Stud Configuration - Top: 2
- Application: Freightliner
- VMRS: 016-008-000
CrossReference:
- Automann: 566CT64266, 566CT68207, AB1DF239781, AB1DF23A999
- Contitech: 910S16A382
- Dayton Parts Batco: 1R12603, 3529780
- Firestone: W013589781, W013778536, W013779780
- Freightliner: 1613840000, 1614004000, 1616773000, 1619466000, 6813200017, A1614004000
- Meritor: FS9781, MAF9781, MAF9781B
More Images
Fortpro Air Spring Replaces 9781, 1R12-603 for Freightliner Trucks | F245585
Fortpro Air Springs F245585 is a high-quality air suspension solution for Freightliner trucks and other commercial vehicles. They offer excellent driving stability and shock absorption, improving driver comfort and vehicle life.
Specifications:
- Brand: Fortpro
- Part Type: Air Spring / Air Spring Bag / Suspension Air Spring
- Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
- Part OEM: 9781, W01-358-9781, W013589781
- Position: Primary Truck & Trailer Axle
- Air Spring Style: 1T Reversible Sleeve
- Piston Type: Aluminum
- Bead Plate Diameter Bottom: 10.62"
- Bead Plate Diameter Top: 9.00"
- Collapsed Height: 8.75"
- Max. Height: 23.00"
- Part Diameter: 10.62"
- Piston Height: 6.91"
- Stud Configuration - Bottom: 1
- Stud Configuration - Top: 2
- Application: Freightliner
- VMRS: 016-008-000
CrossReference:
- Automann: 566CT64266, 566CT68207, AB1DF239781, AB1DF23A999
- Contitech: 910S16A382
- Dayton Parts Batco: 1R12603, 3529780
- Firestone: W013589781, W013778536, W013779780
- Freightliner: 1613840000, 1614004000, 1616773000, 1619466000, 6813200017, A1614004000
- Meritor: FS9781, MAF9781, MAF9781B
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Fortpro Air Springs F245585 is a high-quality air suspension solution for Freightliner trucks and other commercial vehicles. They offer excellent driving stability and shock absorption, improving driver comfort and vehicle life.
Specifications:
- Brand: Fortpro
- Part Type: Air Spring / Air Spring Bag / Suspension Air Spring
- Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
- Part OEM: 9781, W01-358-9781, W013589781
- Position: Primary Truck & Trailer Axle
- Air Spring Style: 1T Reversible Sleeve
- Piston Type: Aluminum
- Bead Plate Diameter Bottom: 10.62"
- Bead Plate Diameter Top: 9.00"
- Collapsed Height: 8.75"
- Max. Height: 23.00"
- Part Diameter: 10.62"
- Piston Height: 6.91"
- Stud Configuration - Bottom: 1
- Stud Configuration - Top: 2
- Application: Freightliner
- VMRS: 016-008-000
CrossReference:
- Automann: 566CT64266, 566CT68207, AB1DF239781, AB1DF23A999
- Contitech: 910S16A382
- Dayton Parts Batco: 1R12603, 3529780
- Firestone: W013589781, W013778536, W013779780
- Freightliner: 1613840000, 1614004000, 1616773000, 1619466000, 6813200017, A1614004000
- Meritor: FS9781, MAF9781, MAF9781B
