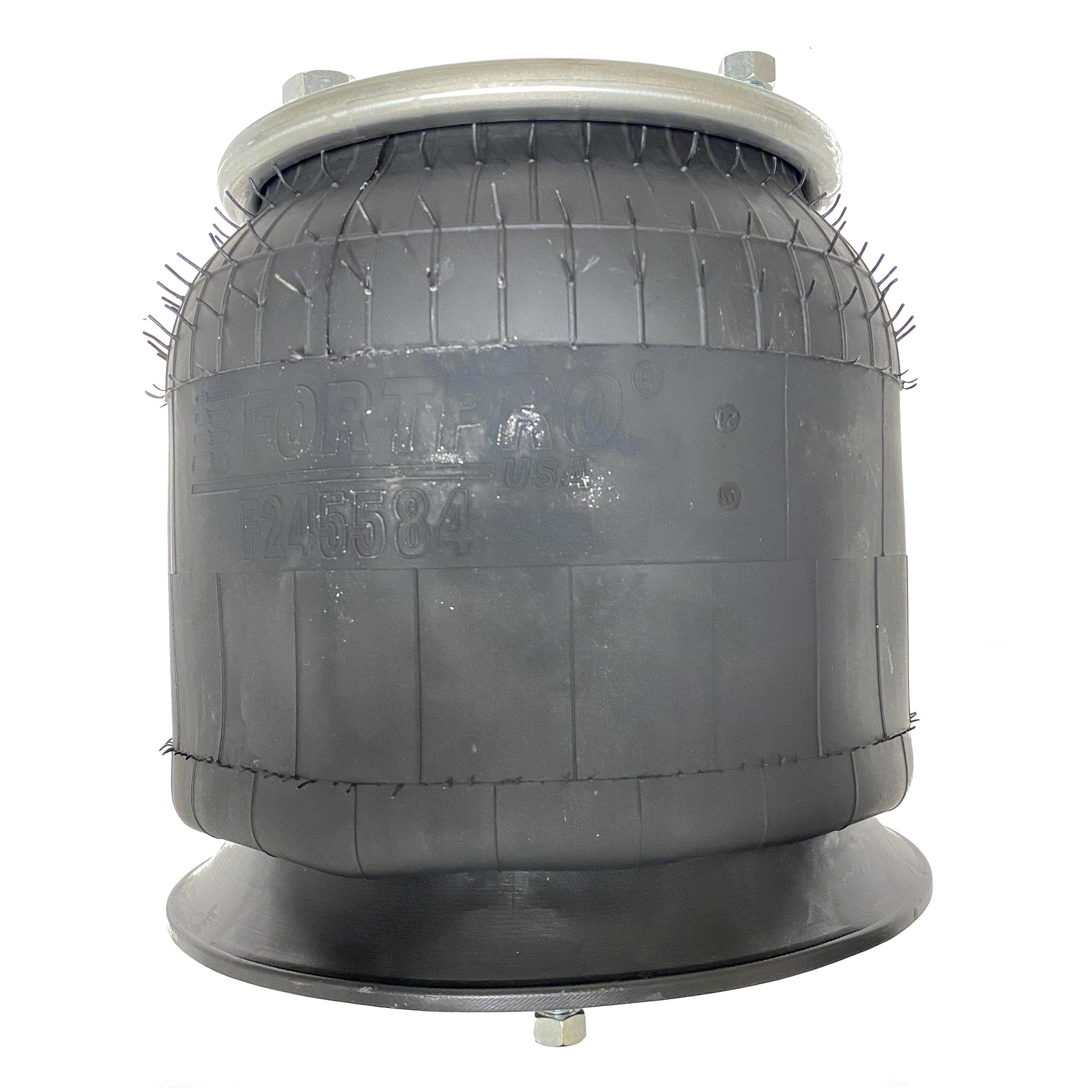

Fortpro Air Spring Replaces 9780, 1R12-303 for Freightliner Trucks | F245584

Fortpro Air Springs F245584 is a high-quality air suspension component that provides increased driving stability, reduces vibration and shock while driving, and is easy to install. They are specifically designed for use in Freightliner trucks and other similar commercial vehicles.

Specifications:

• Brand: Fortpro
• Part Type: Air Spring / Air Spring Bag / Suspension Air Spring
• Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
• Part OEM: 9780, W01-358-9780, W013589780
• Air Spring Style: 1T Reversible Sleeve
• Position: Primary Truck & Trailer Axle

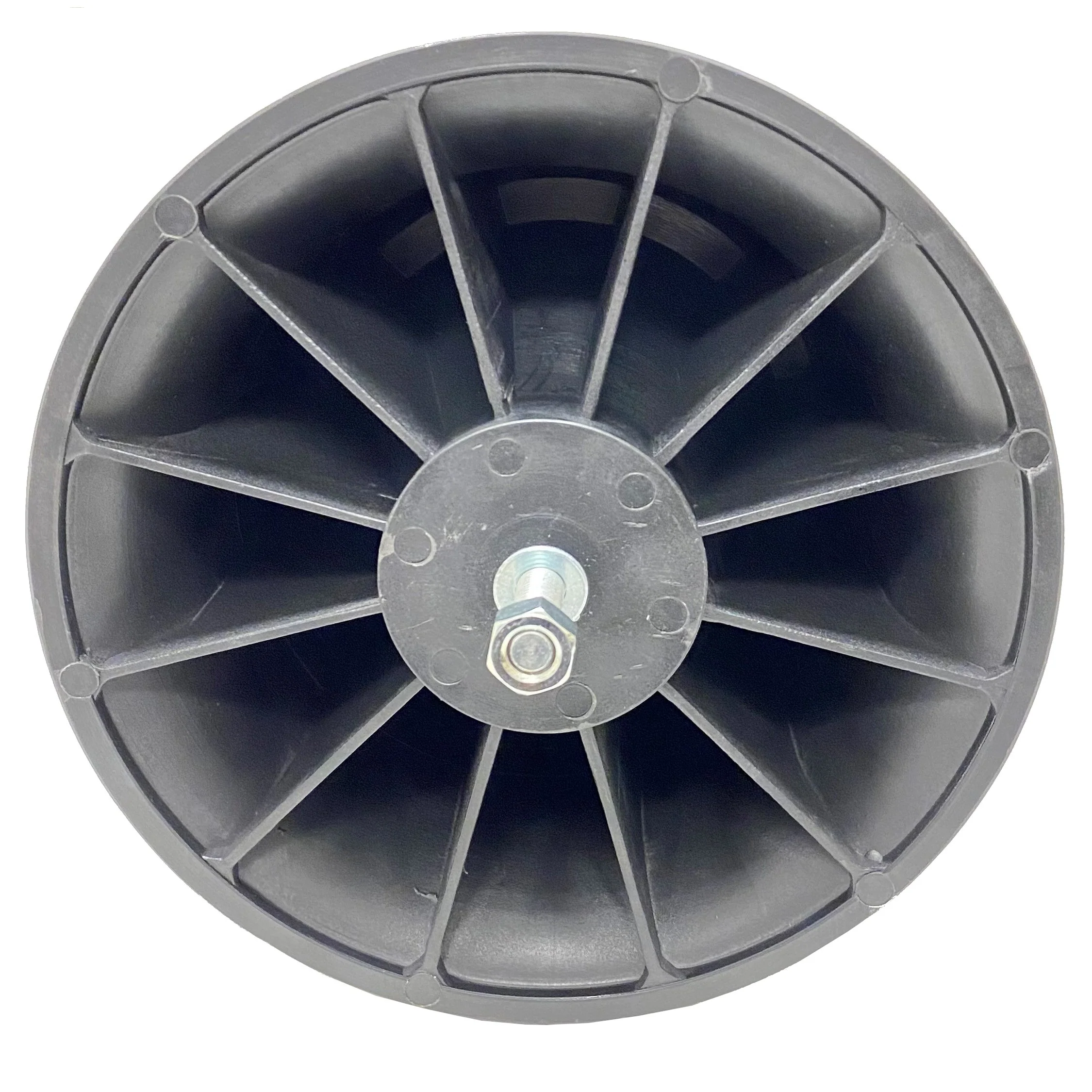

• Piston Type: Composite

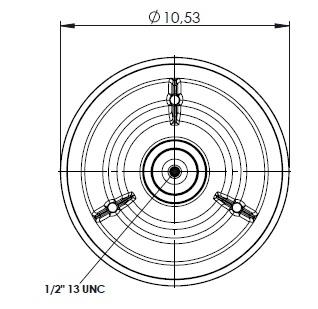

• Bead Plate Diameter Bottom: 10.62"

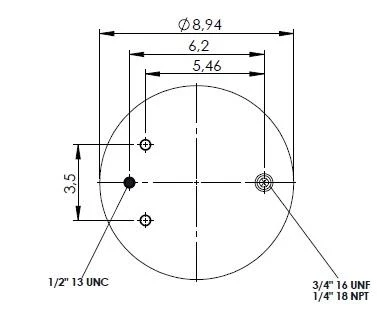

• Bead Plate Diameter Top: 9.00"
• Collapsed Height: 8.75"
• Max. Height: 23.00"
• Part Diameter: 10.62"

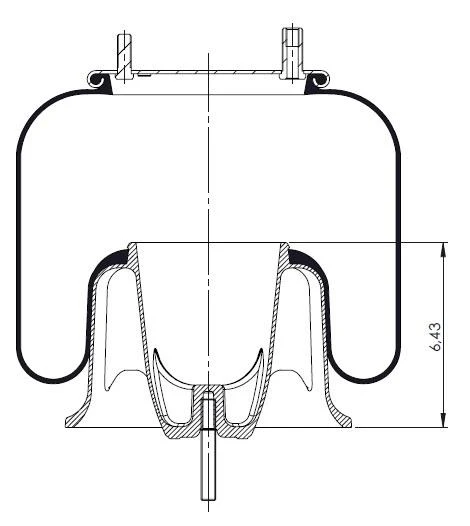

• Piston Height: 6.89"
• Stud Configuration - Bottom: 1
• Stud Configuration - Top: 2
• Application: Freightliner
• VMRS: 016-008-001

CrossReference:

• Automann: 566CT67473, AB1DF239780
• Contitech: 1DK23K9780, 910S16A382, 910S16A382, 910S16P382
• Dayton Parts Batco: 1R12303, 3529781
• Firestone: 9780, AS9780, W013589780, W013778528
• Freightliner: 1613810000, 1613810000, 1613810001, 1613810001, 1613810002, 1613810002, 161381001, 1614377000, 161673000, 1619768000, 6813200017, 6813200017, 6813280001, A1613668002, A1614004000, A1614004000, A1614004001, A1614004001
• Goodyear: 1R12186, 1R12186, 1R12189, 1R12189, 1R12303, 1R12303, 1R12603
• Meritor: FS9780, MAF9780,
