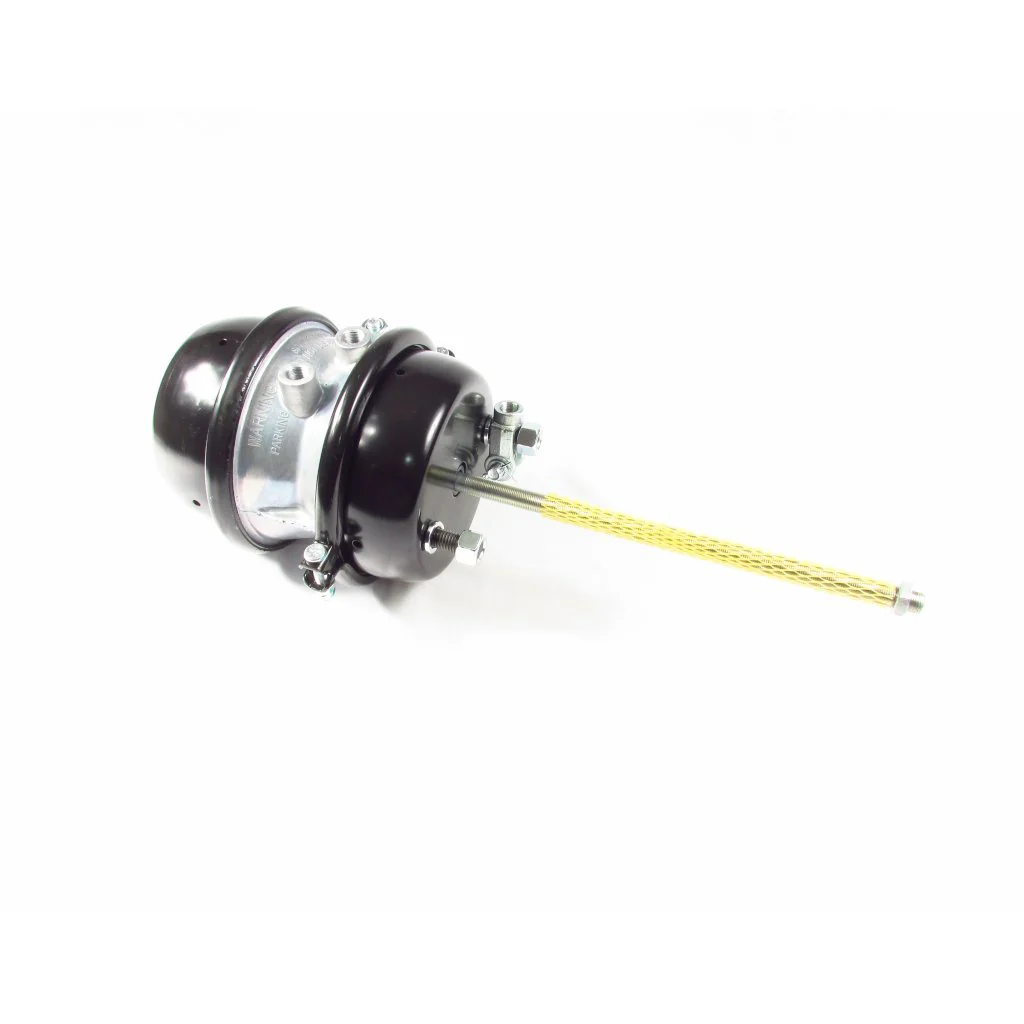

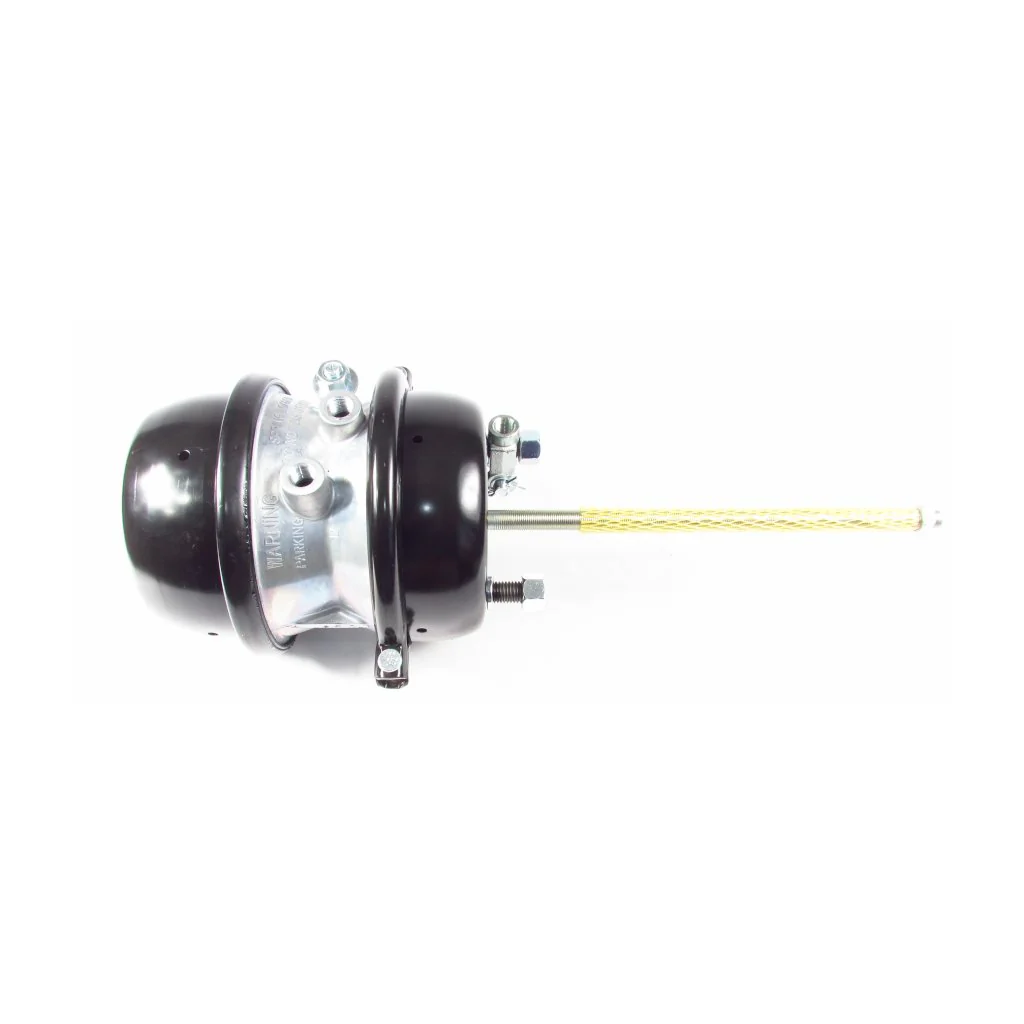

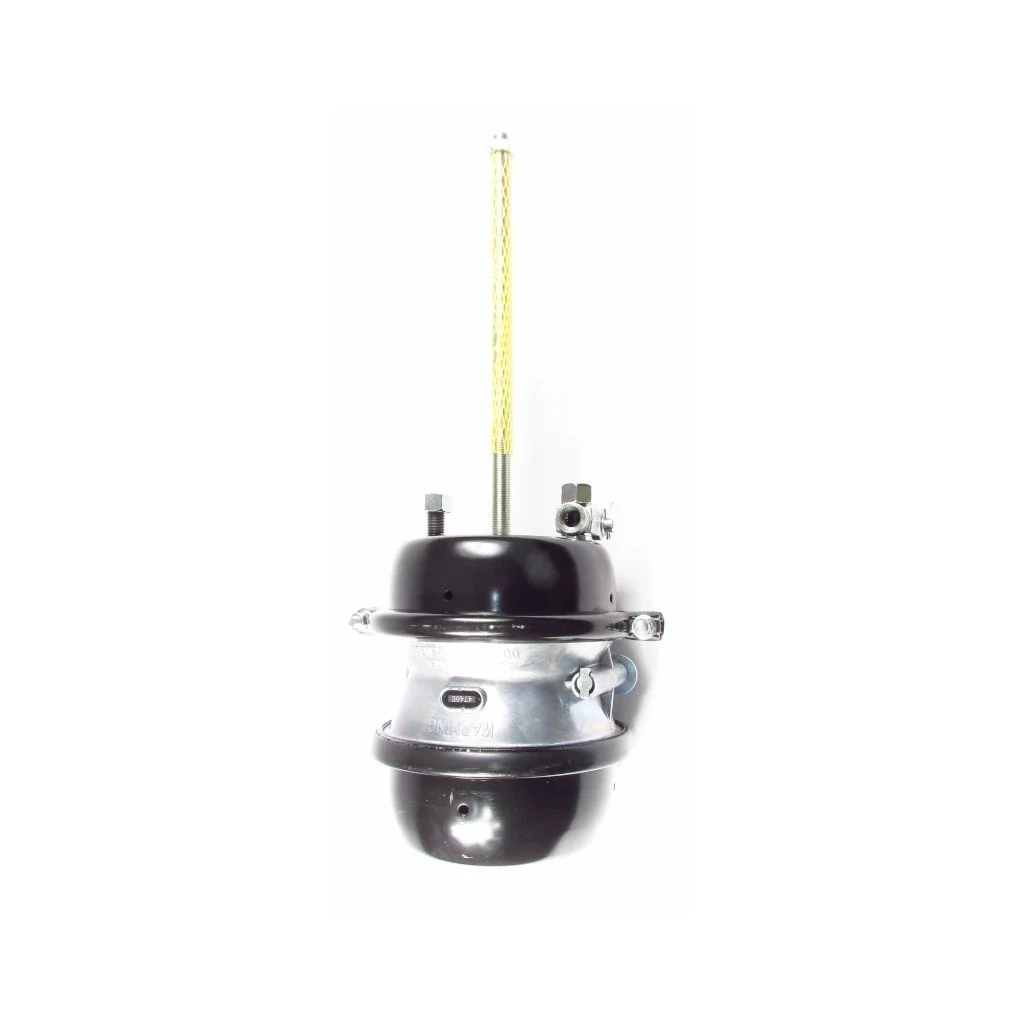

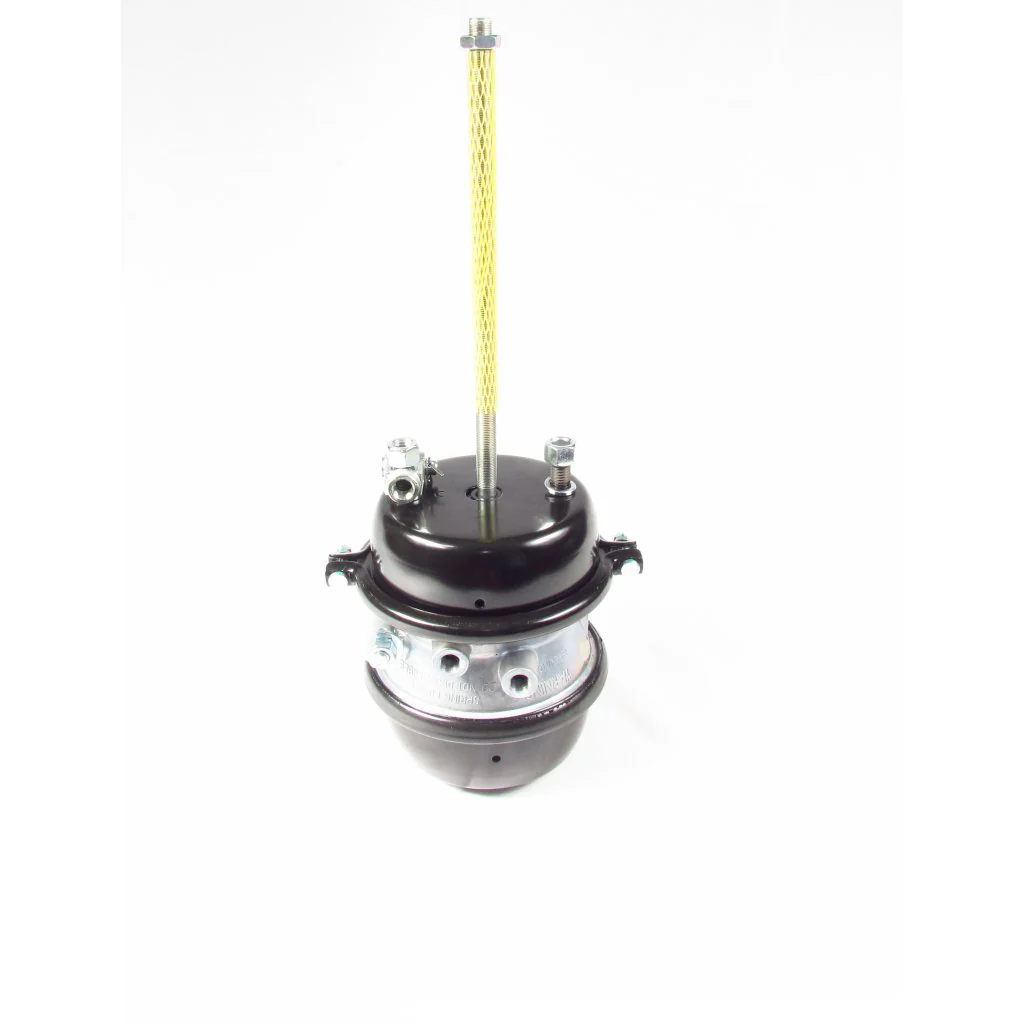

Fortpro Type 30/30 Sealed Air Spring Brake Chamber - 2 1/2" Stroke Threaded | F224746E
The Fortpro 3030 Sealed Air Spring Brake Chamber with a 2 1/2" stroke and threaded clevis is a reliable and durable solution for heavy-duty and semi-trucks braking systems. The powder-coated finish ensures long-lasting protection against wear and tear, and the 90 ° air port position with 3/8-18 NPT thread diameter ensures easy installation and maintenance. The threaded clevis allows for easy installation and adjustment of the pushrod, and the 5/8"-11 UNC thread diameter provides a secure fit. With a maximum pressure of 150 PSI and standard stroke size, this brake chamber is a dependable choice for any heavy-duty truck or semi-trailer application. Trust Fortpro for high-quality brake components that deliver reliable performance every time.
Specifications:
- Brand: Fortpro
- Vehicle Type: Semi-Trucks / Heavy Trucks
- Product Department: Brakes
- Product category : Brake Chambers
- Part Type: Air Brake Chamber
- Also Known as: Brake Canister / Brake Can / Air Brake Canister / Brake Pod / Brake Pots
- Chamber Type: Spring Brake Chamber
- Model: Type 3030, T30/30, 3030, 30 30
- Stroke: Standard Stroke / Short Stroke
- Stroke Lenght: 2.50 in. (63.5 MM)
- Outside Diameter (O.D.): 8.30 in.
- Brake Type Support: Drum
- Serviceability: Sealed
- Push Rod Thread: 5/8-18 UNF-2A
- Push Rod Length: 12.00 in
- Service Port: 3/8-18 NPTF
- Emergency/Release Port: 3/8-18 NPTF
- Port Angle: 90 °
- Clevis Included: Included
- Clevis Mounting: Threaded
- Maximum Pressure: 150 PSI
- Mounting Bolt Thread: 5/8-11 UNC-2A
- Mounting Bolt Length: 1.50 in. (38.1 MM)
- Brake System Compatibility: S-Cam
- Chamber Style: Double Diaphragm
- Service Chamber Joint Type: Single Clamp Band
CrossReference:
- Automann: 179SB3030, 179SB3030S
- Bendix: 165255, K049898, NT3030STD120
- Dayton: 3030C
- Euclid: E-BC3030C
- Freightliner: 3030TS
- Haldex: GC3030, 1393030051
- Mack: 19QE441RP1
- MGM: 3232951, 3232951X,
- Meritor: R873030C
- OTR: OTR3030SB,
- PAI: EM30300-100
- TRP: SB3030CC,
- WA: WA3030T
